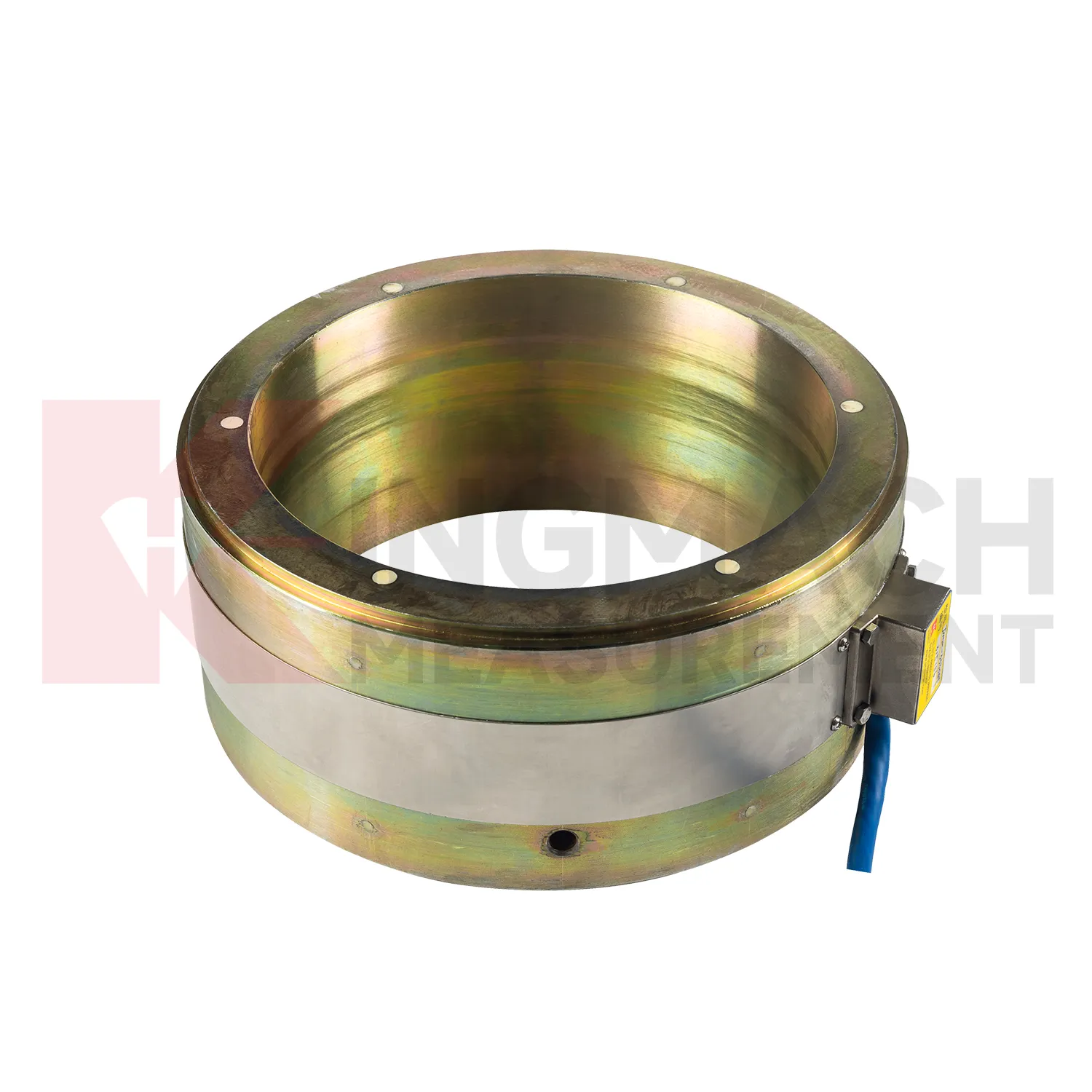

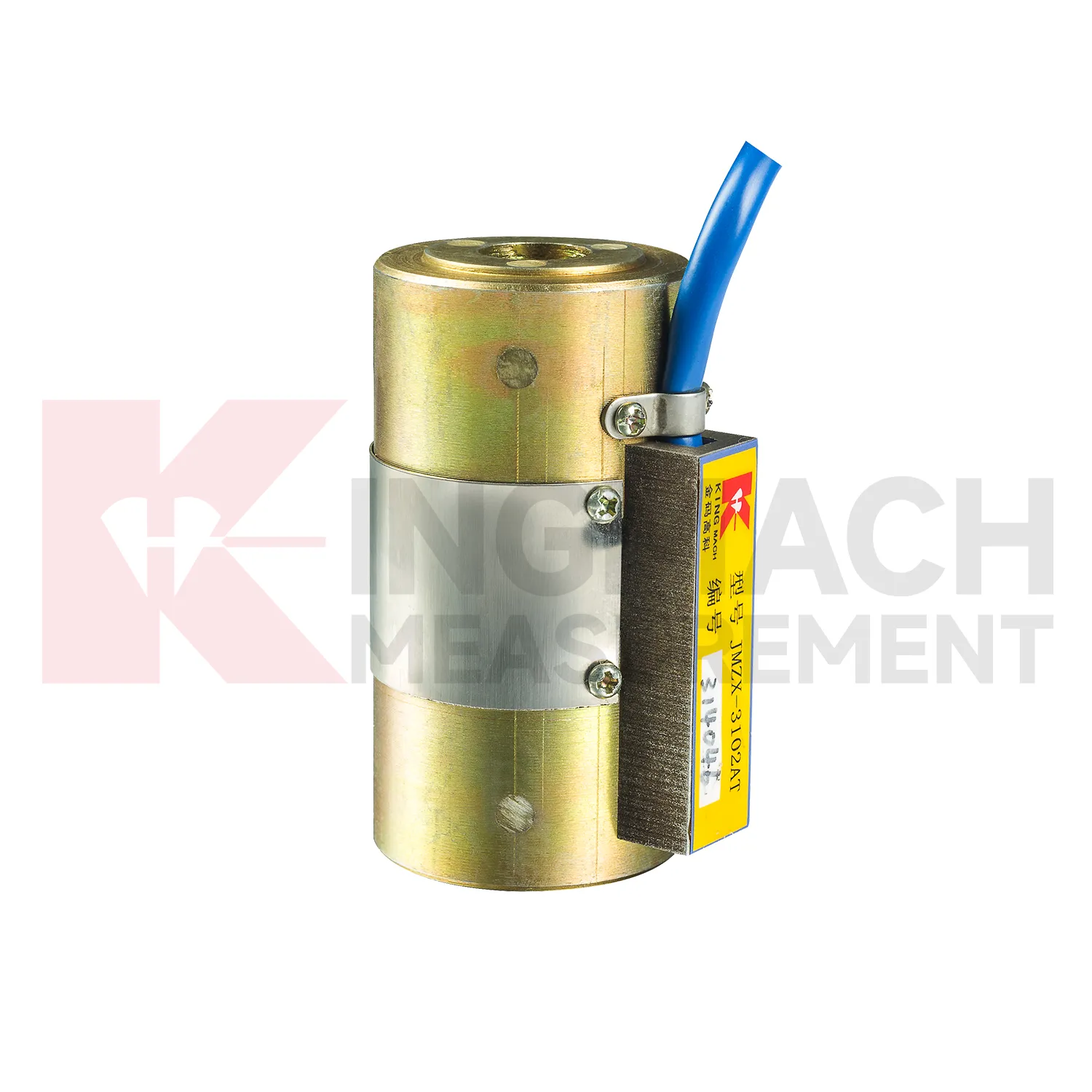

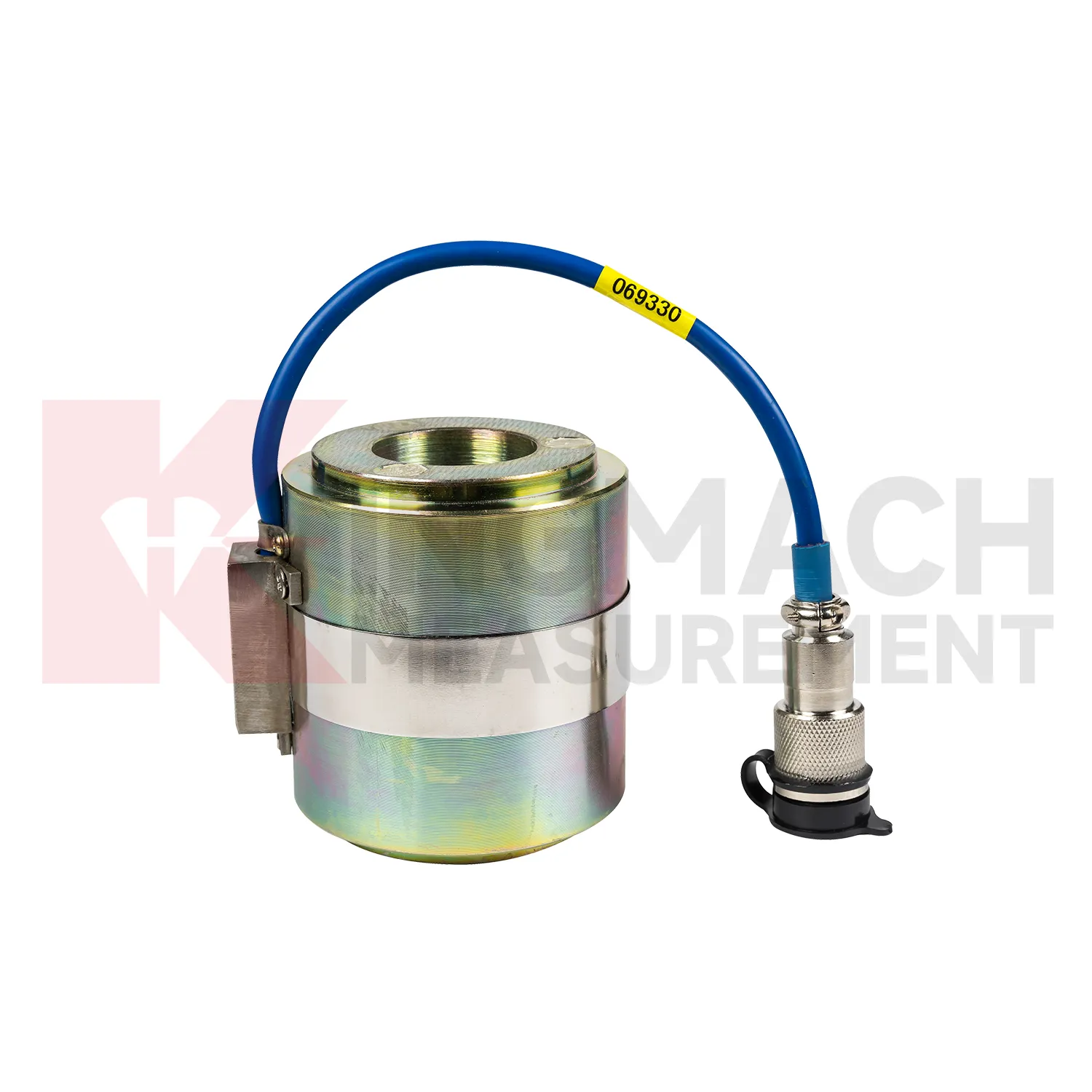

Hul lastcelle JMZX-3XXXHAT

General Product Information

Forretningsvilkår for produkter

Funksjoner

1. Using vibration-string theory to design and manufacture , these sensors have high sensitivity, high accuracy, high stability characteristics, so they are suitable for long-term observation.

2. Integrated intelligent chip, digital output，signal transmission over long distances without distortion, strong anti-interference ability.

3. Integrated storage chips, have intelligent memory function. Sensor model calibration factor and other parameters permanently stored in the sensor when manufacturing. You can save 800 times the required measurement parameters, such as measuring time, measuring point temperature, zero values of parameters and temperature correction, etc.

4. Good insulation, waterproof and durable.

5. A variety of specifications, the users can choose or customized according to different requirements.

6. Equipped with our test instruments to read measured pressure directly.

7. According to the sensor calibration parameters, zero values, directly display the average pressure acting on the sensor. The measurement is intuitive, simple and fast.

8. Built-in temperature sensor, the measurement process can be automatic temperature correction, excluding the impact of temperature on the measured value. Supporting the use of our company’s three to six vibrating-string detector.

Søknader

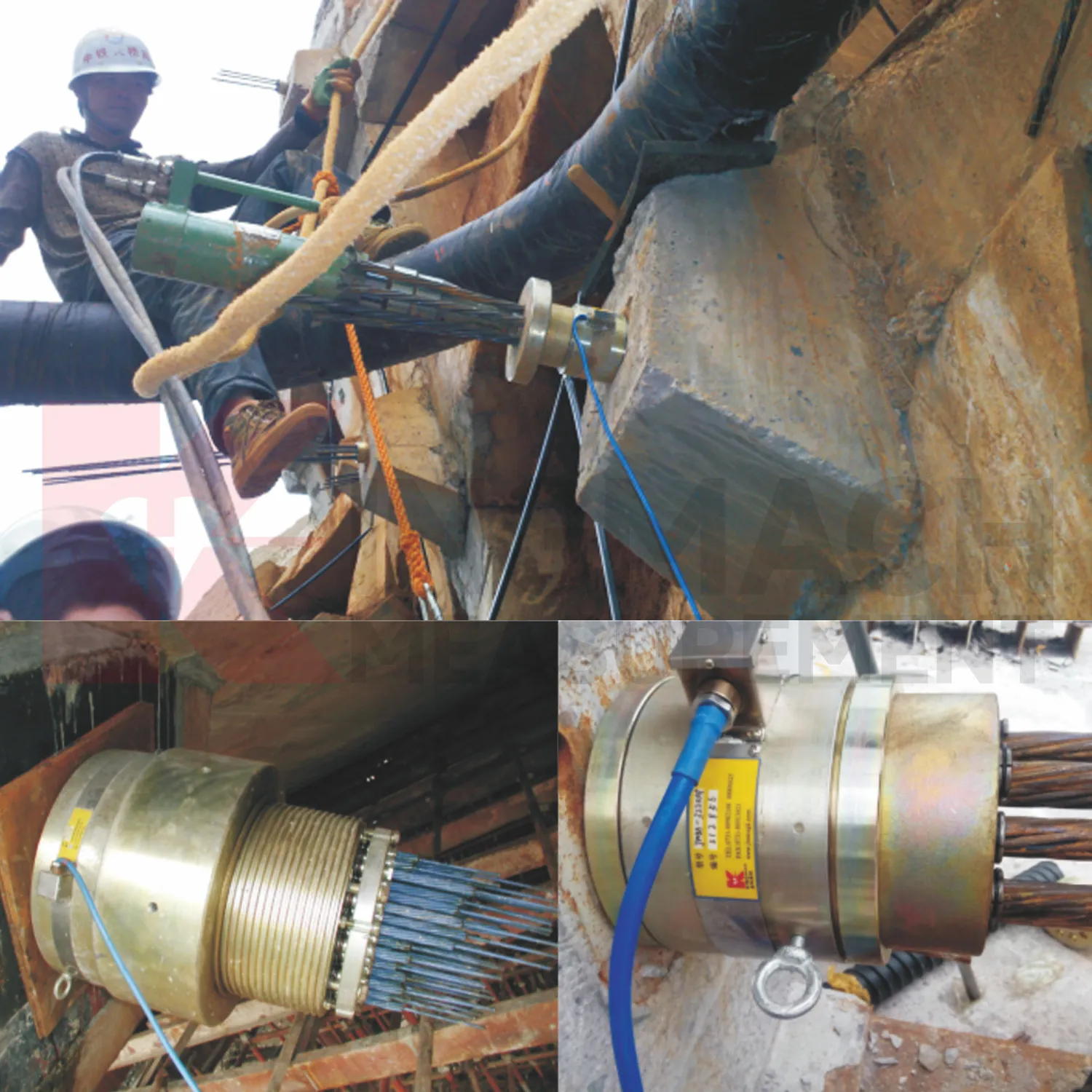

These sensors are widely used in construction, railway, transport, dams and other engineering cable force measurement, so we can fully understand the structure of the measured cable force state, to ensure building safety.

Key performance indicators
